Water Feature and Koi Carp Pond Design and Construction

What the project involved:

  • Excavate ground for pond and use soil to level of another part of the garden
  • Install drainage sumps in steel reinforced concrete floor
  • Construct 9″ re-enforced walls for big pond and smaller nursery pond half in ground half above ground
  • Install inlets and skimmers and underwater lights and render walls and floors of both ponds
  • Build plant room at the end of pond with a waterfall on the roof returning over granite to big pond
  • Install a window in big pond
  • Fiberglass the shells of both ponds
  • Supply and fit all plant room equipment including 3 filters, 4 pumps, 3 uv filters, 4 external sieves
  • Clad the walls of ponds and build decking around the whole pond
  • Build a pergoda over the big pond with a bamboo roof

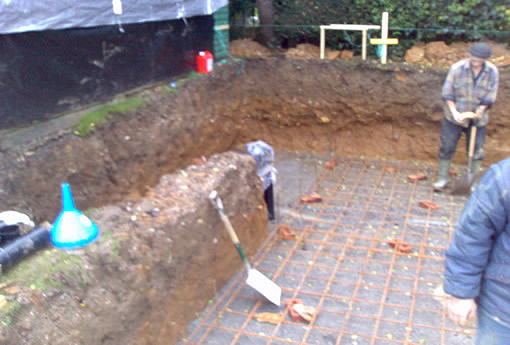

The pond dug out mot laid and steel reinforcing.

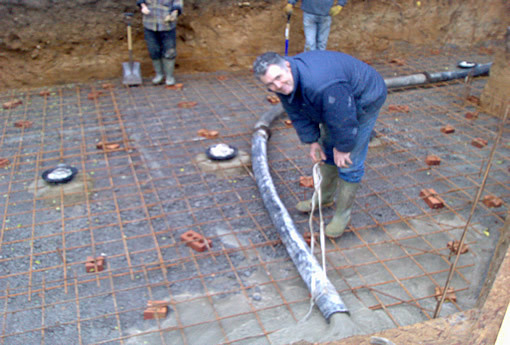

Bottom drain Sumps fitted,steel Reinforcing laid and cement being pumped in.

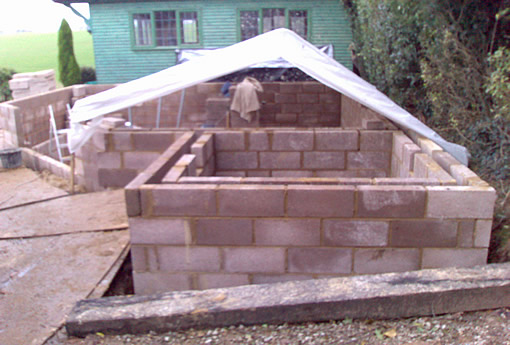

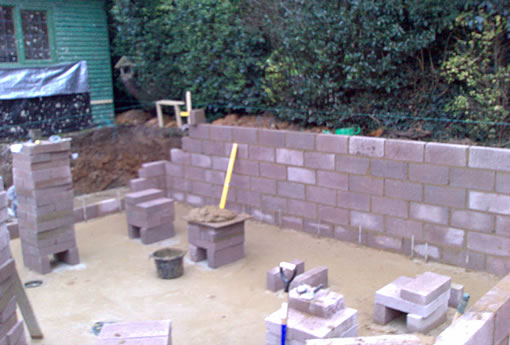

Concrete blocks being laid for pond walls

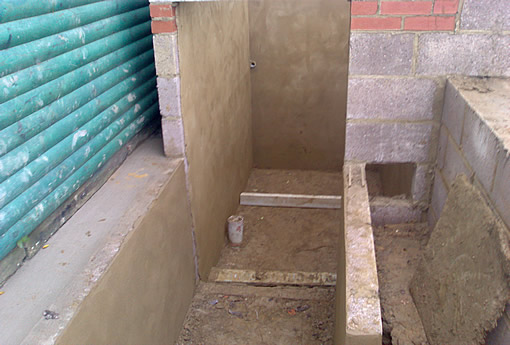

Pond plantroom under construction

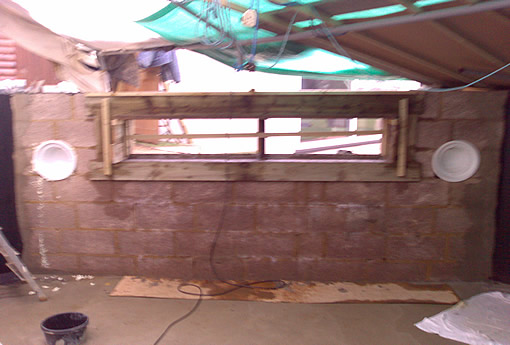

Observation window in pond being constructed
Block work complete ready for next stage of project

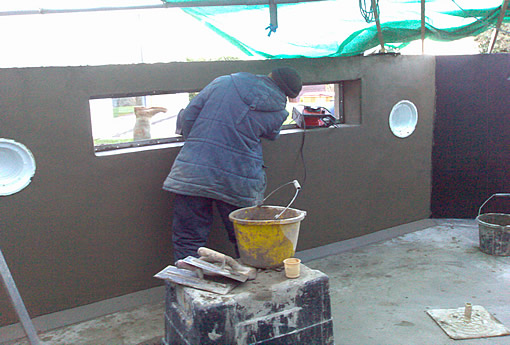

Observation window and lights in wall that is being rendered

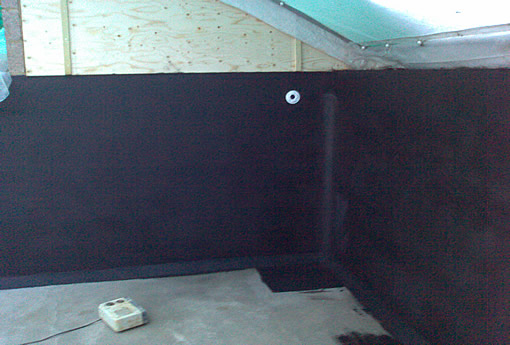

Pond having Fibreglass applied in black
Pond construction finished surround being cladded

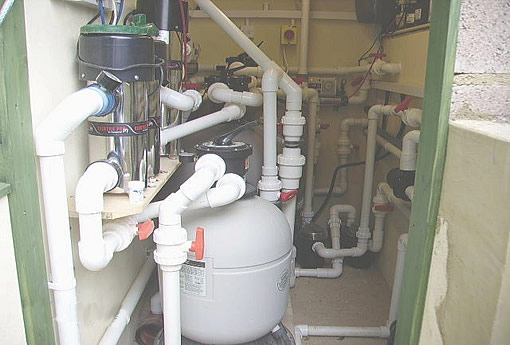

Plantroom installed including Uv filters ,bead filters pumps

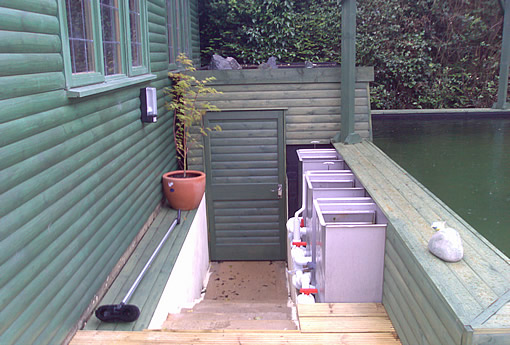

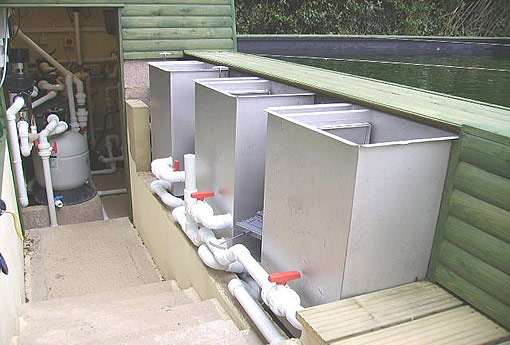

Filtration sieves installed
Plantroom finished with waterfall on top and filtration sieves running

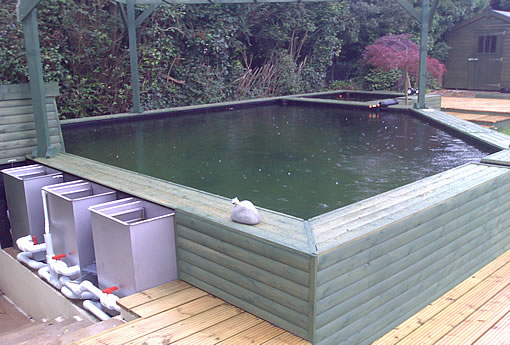

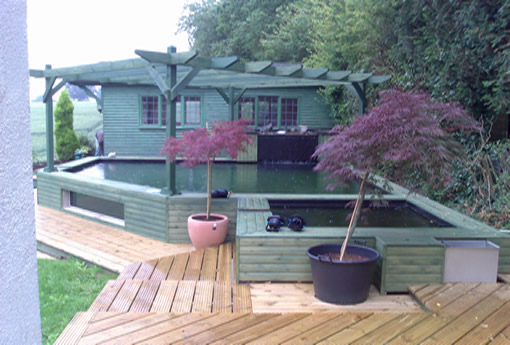

Finished Koi Pond and Nursery pond Finished

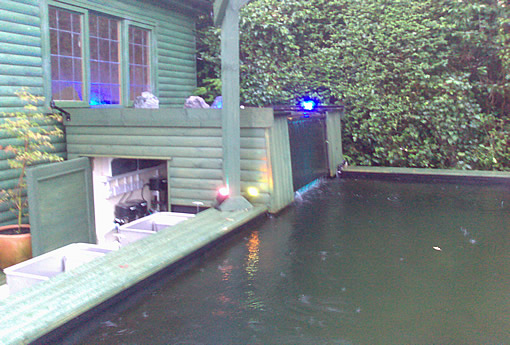

Koi Pond up and running including waterfall and lighting
Completely finished Koi Carp Pond.
